Stage Spot Lighting Ceramic SMD6070 LED 50W RGBLAC Light LED Source

Name: Stage Spot Lighting Ceramic SMD6070 LED 50W RGBLAC Light LED Source
Brand: TYANSHINE
Price: 1 USD

China Stage Spot Lighting Ceramic SMD6070 LED 50W RGBLAC Light LED Source wholesale

Place of Origin : CN

Brand Name : TYANSHINE

Certification : RoHS / Reach

Model Number : TX-6070RGBLLAC50FC120-NUVENG-02

MOQ : 10pcs

Price : negotiation

Packaging Details : In Tray

Delivery Time : 5-10 days

Payment Terms : T/T

Supply Ability : 10,000pcs/week

Colour : RGBWS/ RGBLAC / RGBLACP/RGBWLAP

Power : 50W

PKG : SMD6070

Substrate : Ceramic

Current : 2500mA

Contact Now

Stage Spot Lighting Ceramic SMD6070 LED 50W RGBLAC Light LED Source

Stage Spot Lighting SMD6070 LED 50W RGBLAC Light LED Source

Features:

1, SMD5050 PKG with 6Colours RGBLAC, High power density

2, Full Spectrum, with color gamut

3, High CRI 95+ during CCT mixing 2000K - 10000k

4, Ceramic substrate, fast heat conductivity

5, Well-mixed distribution of RGBLAC LED chips, perfect colour-mixing

Dimensions:

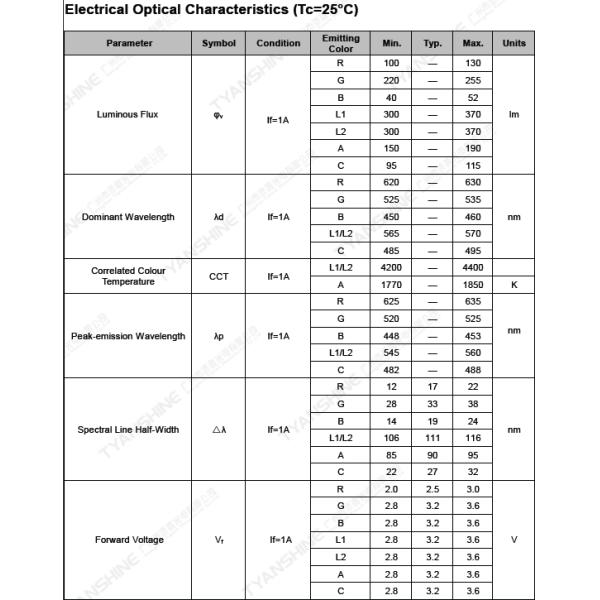

Specifications:

SMD6070 LED, RGBLAC+UV 50Watt

Color	Vf (V)	Max. If (mA)	λd(nm) CCT(K)	φv(lm) IF=1000mA	CRI
Red	2.0-2.6V	2500mA	620-625nm	105-140lm	/
Green	2.8-3.6V	2500mA	525-532nm	220-325lm	/
Royal Blue	2.8-3.6V	2500mA	448-458nm	40-55lm	/
Cyan	2.8-3.6V	2500mA	485-495nm	135-170lm	/
Lime	2.8-3.6V	2500mA	4250-4500K	320-450lm	/
PC-Amber	2.8-3.6V	2500mA	1750-1830K	160-260lm	/
UV	3.0-3.8V	1000mA	390-400nm	350-480lm	/

SMD6070 LED, RGBLLAC 50Watt

Color	Vf (V)	Max. If (mA)	λd(nm) CCT(K)	φv(lm) IF=1000mA	CRI
Red	2.0-2.6V	2500mA	620-625nm	105-140lm	/
Green	2.8-3.6V	2500mA	525-532nm	220-325lm	/
Royal Blue	2.8-3.6V	2500mA	448-458nm	40-55lm	/
Cyan	2.8-3.6V	2500mA	485-495nm	135-170lm	/
Lime	2.8-3.6V	2500mA	4250-4500K	320-450lm	/
PC-Amber	2.8-3.6V	2500mA	1750-1830K	160-260lm	/

Applications:

Broadcast / Photography / TV / Film equipment luminaires

LED Fresnels light

Entertainment stage / studio lighting

Architectural lighting
